Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Wed Aug 31, 2011 11:35 pm

Dori!

TCFD this TCFD that... I have always driven Hot Bodies Chassis' and about a year ago or more I started drifting a TCX. I have had many other chassis' in between, and I'm currently running a Cyclone S CS. There was a lot of bad press when this chassis came out... It was late for release... The steering rack and angle inferior out of box... No major improvements from TC-D... I still love the purple!!!

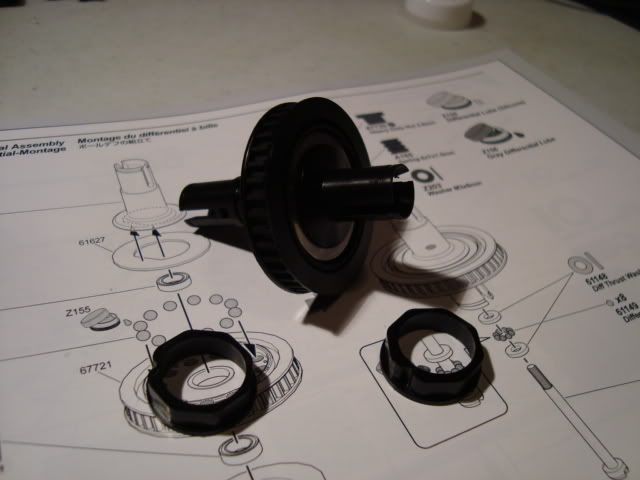

The build was really fun. It took me several days as I found missing parts while build. Overall about 4 hour build time. The aluminum and CF quality is top notch. It came with a Pro-Spec ball diff! Here is a list of parts I was missing.

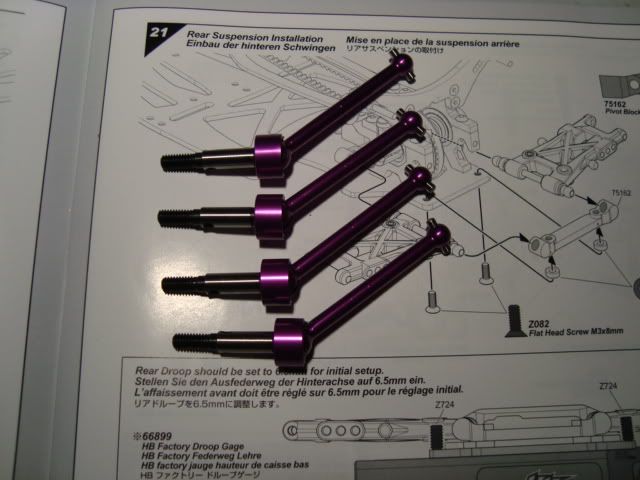

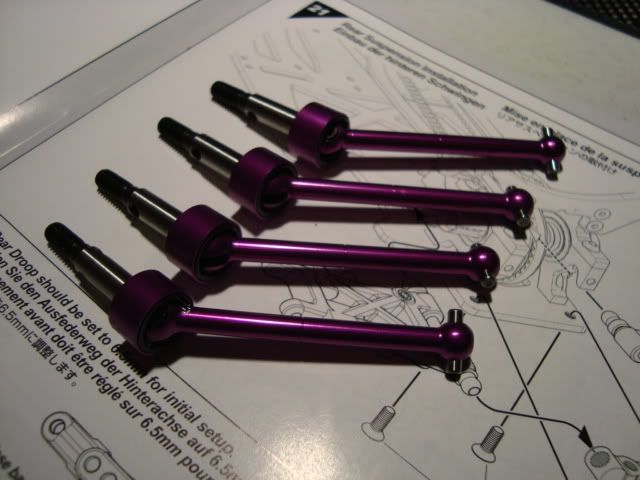

- Axles for the CVD
- Steering turn buckle
- Pinion gear
- Wheel nuts

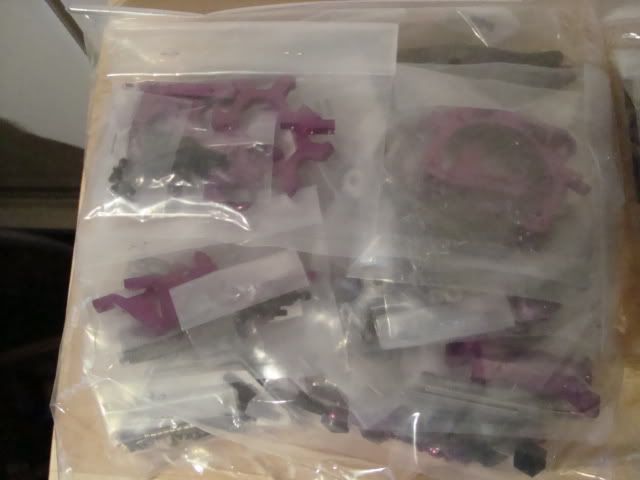

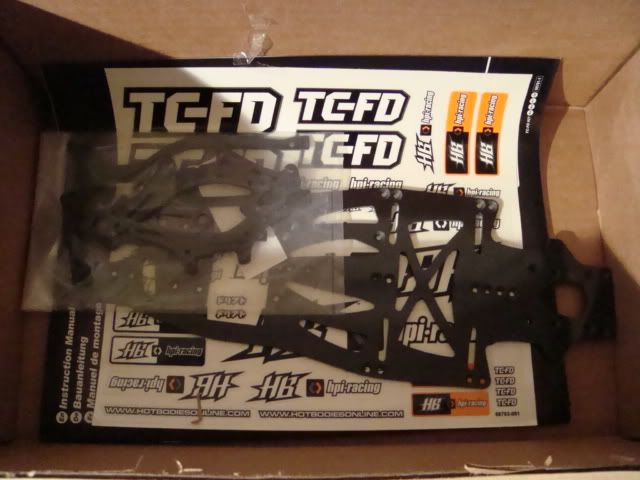

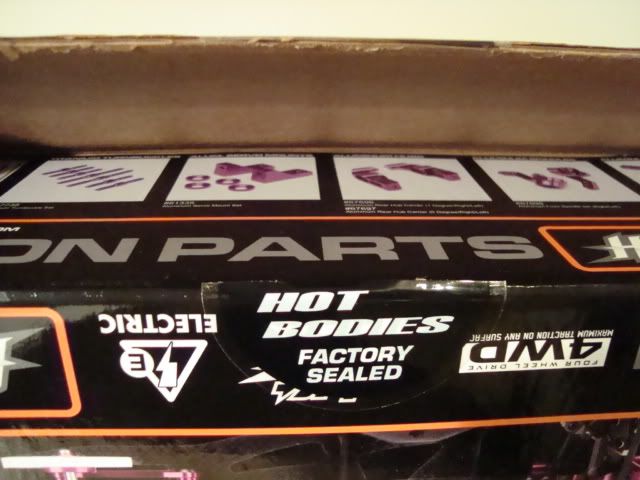

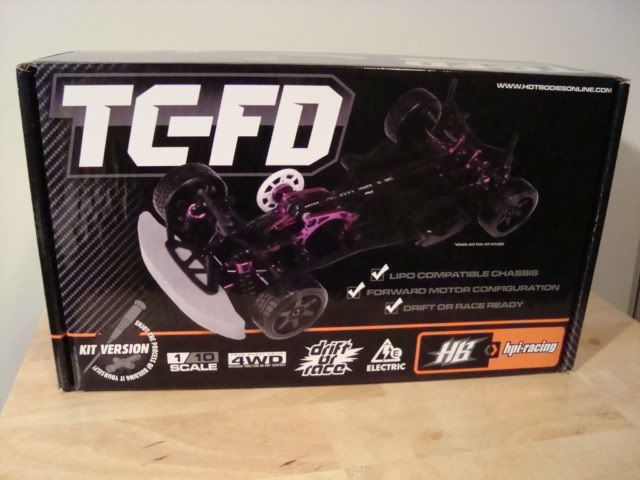

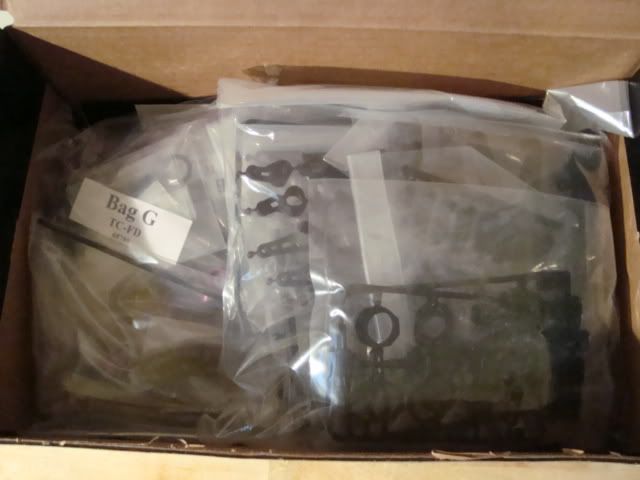

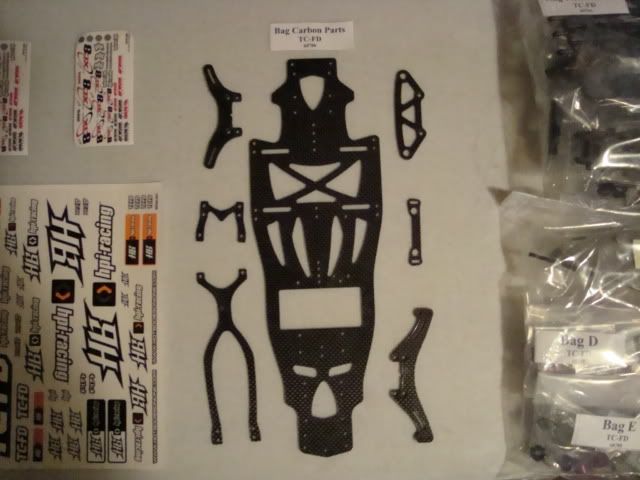

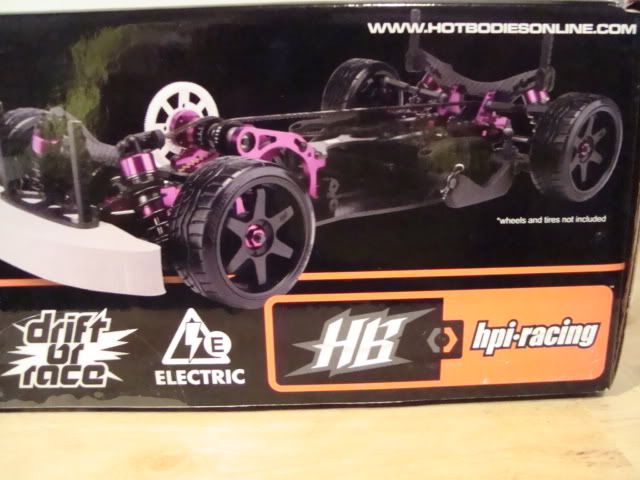

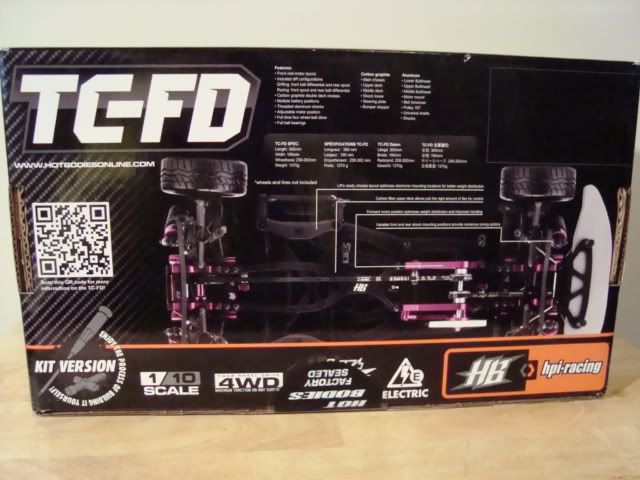

Unboxing!

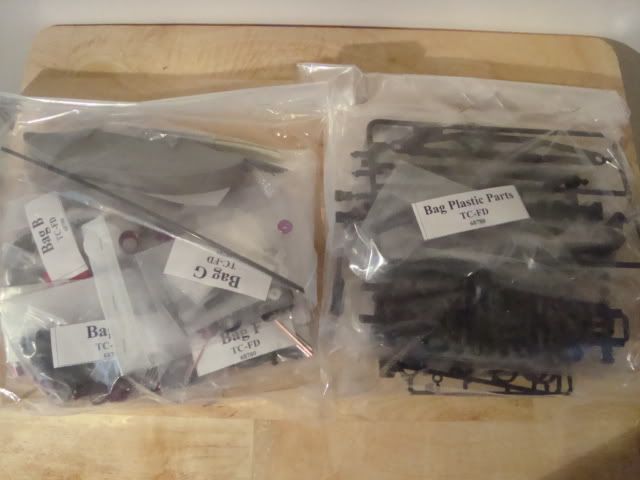

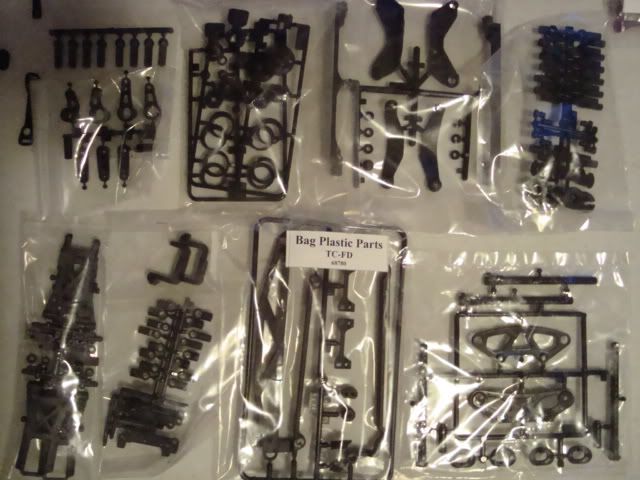

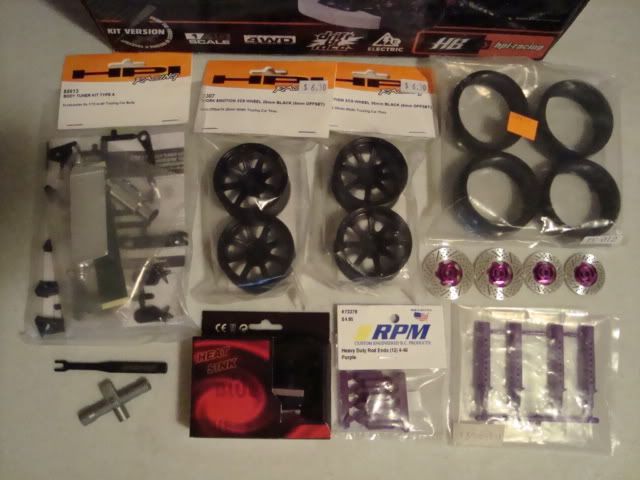

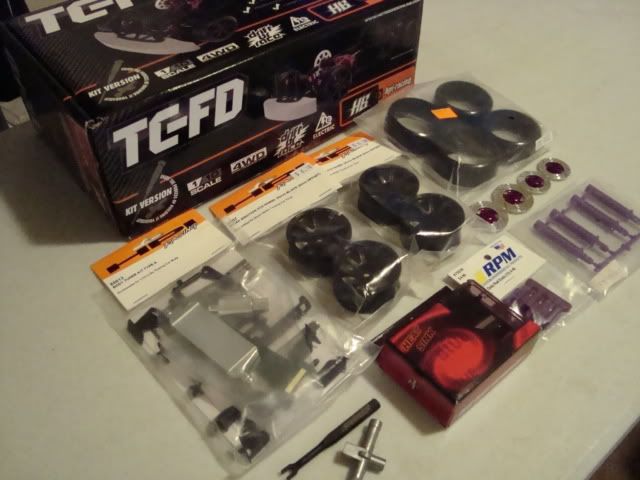

Additional parts.

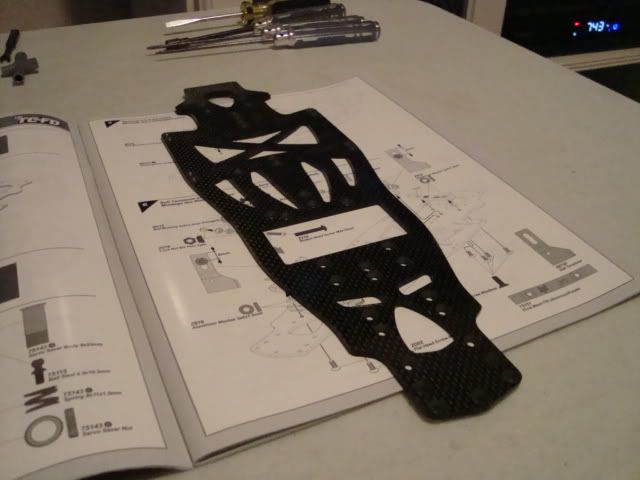

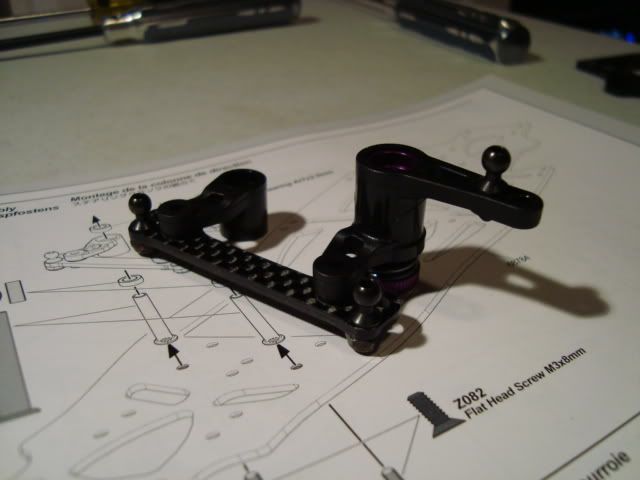

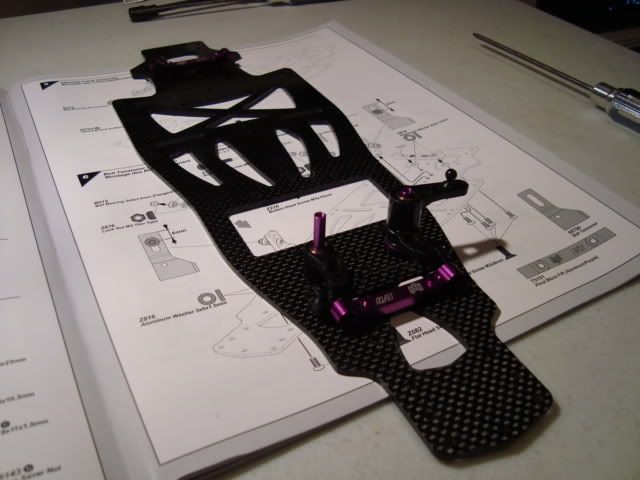

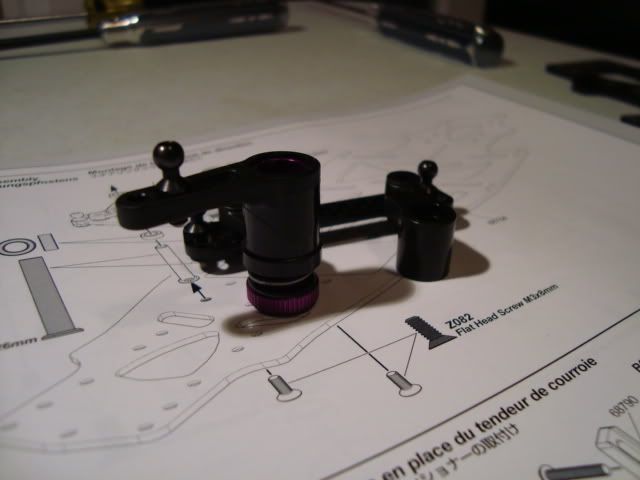

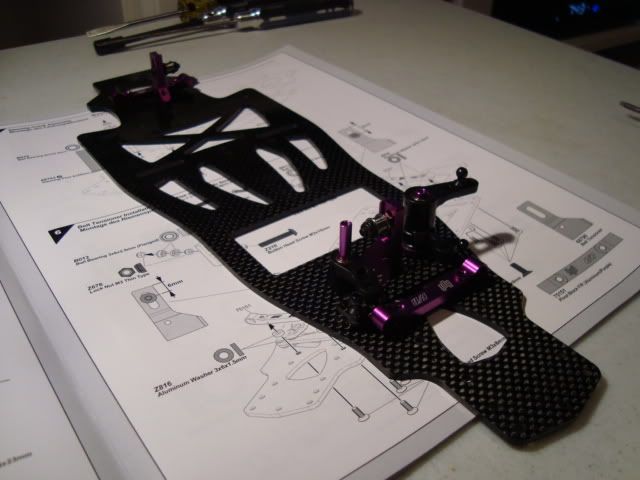

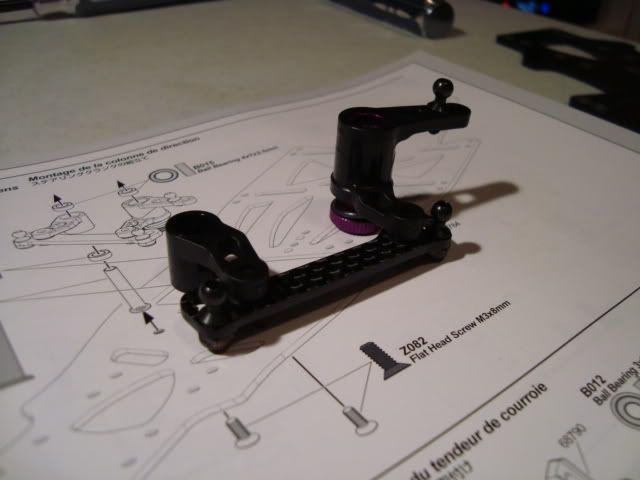

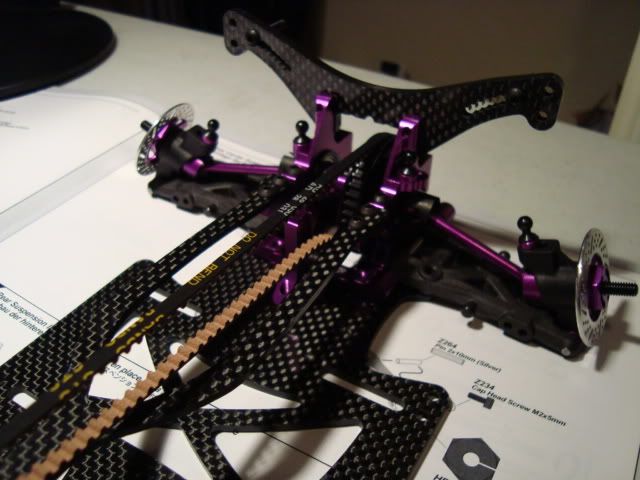

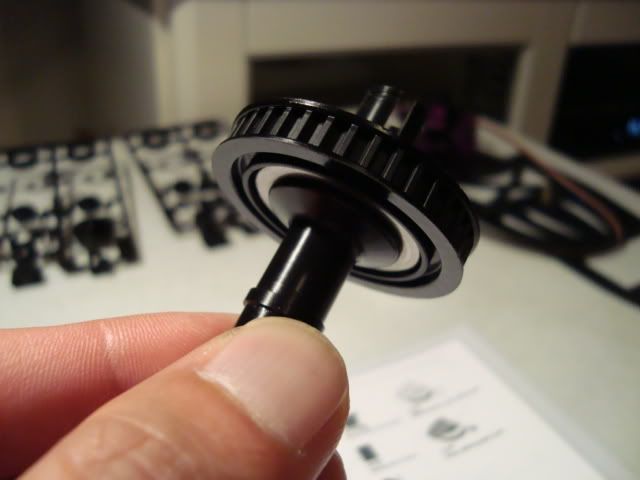

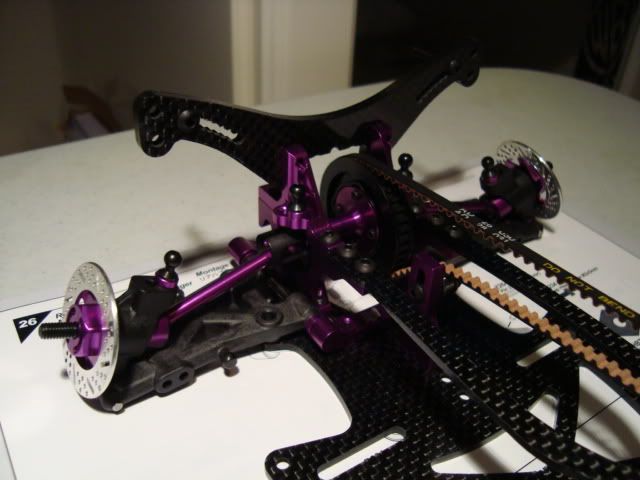

The Build Starting with...

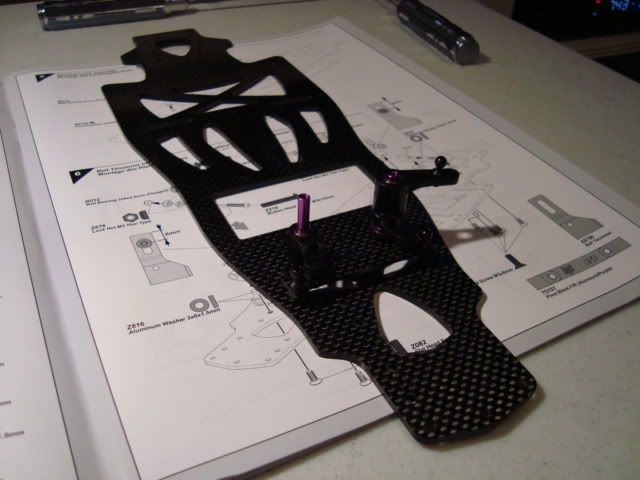

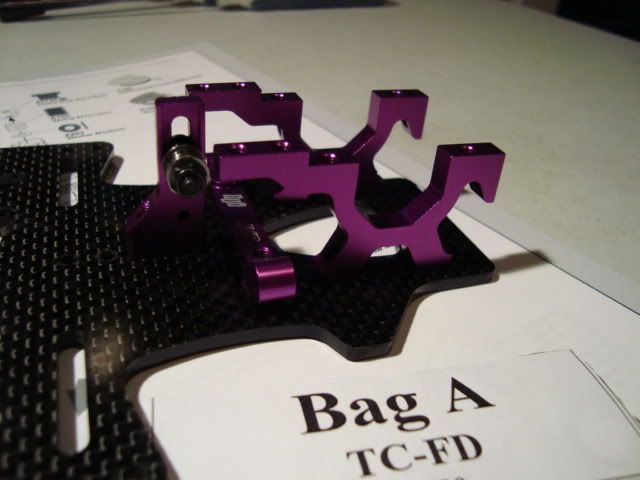

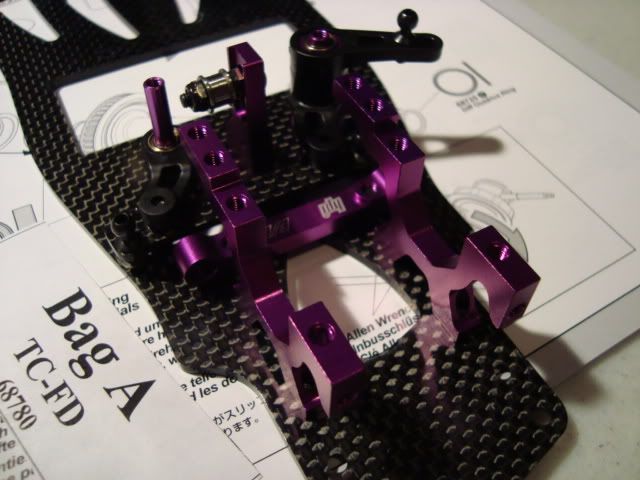

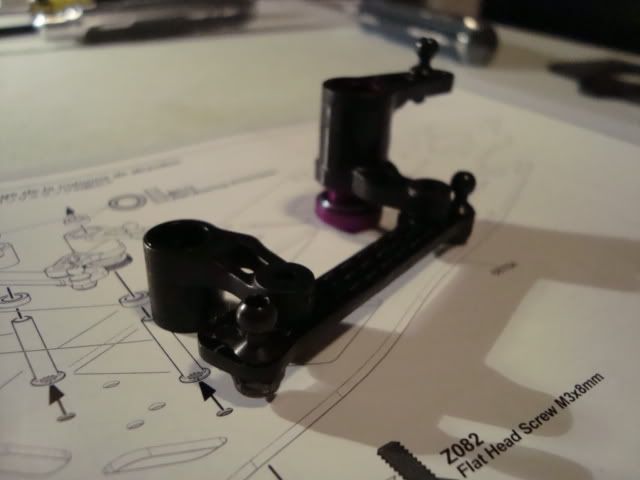

Bag A:

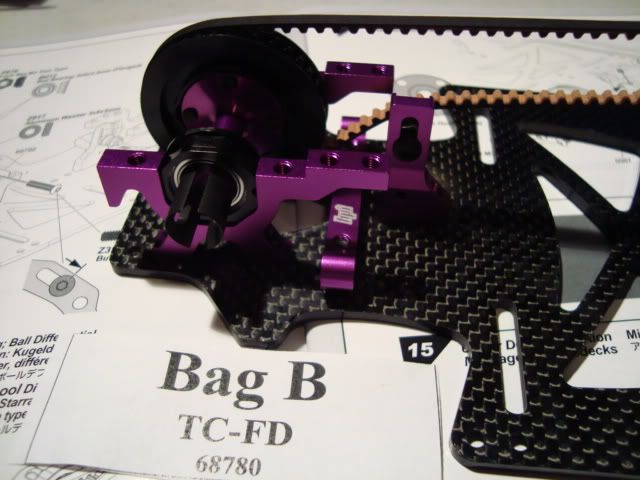

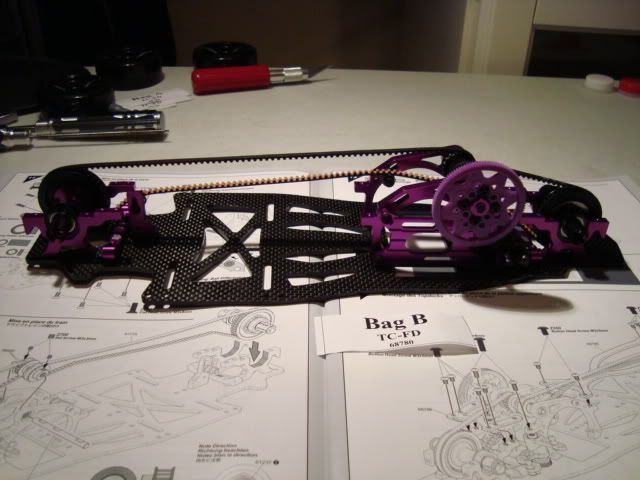

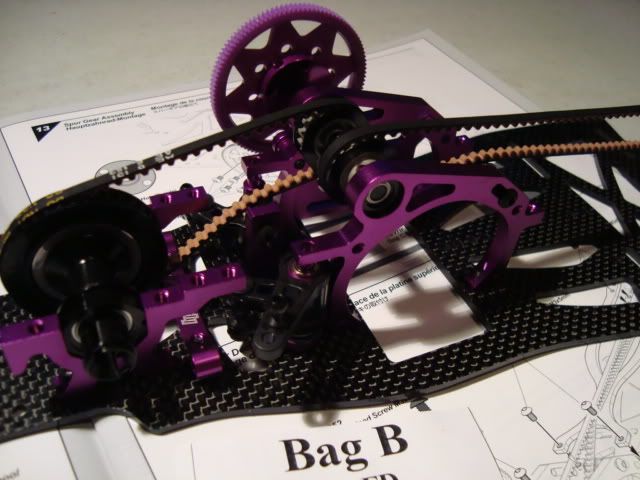

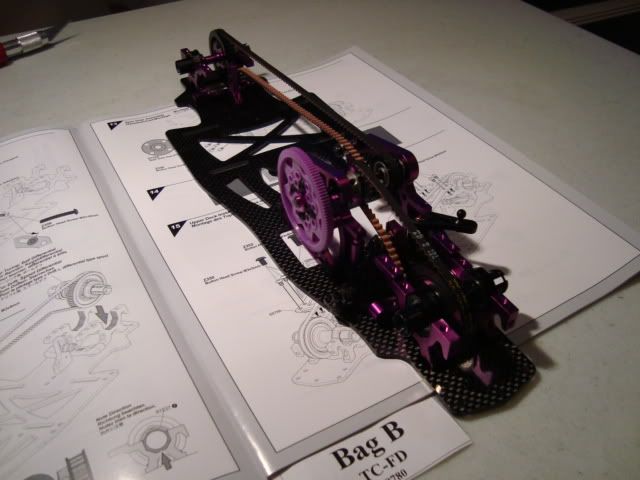

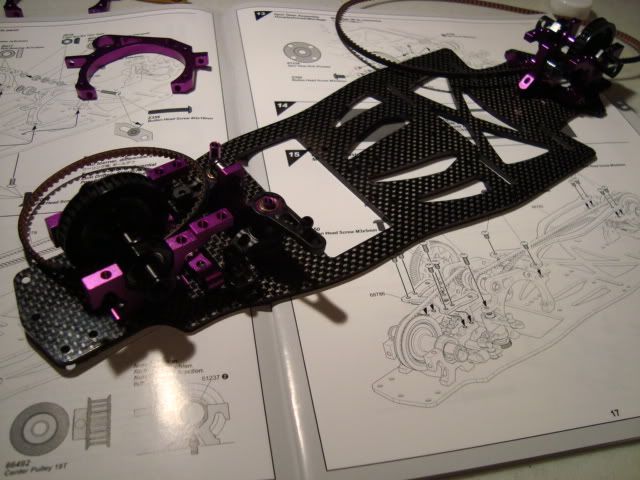

Bag B:

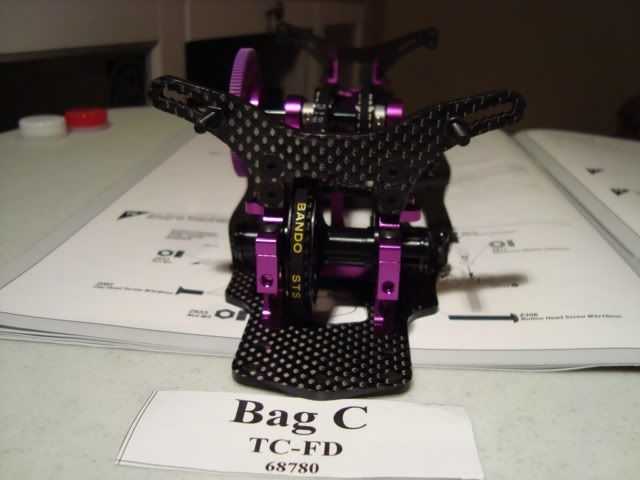

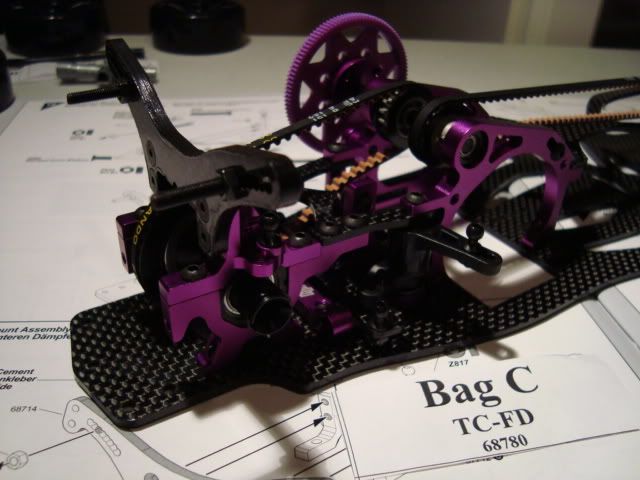

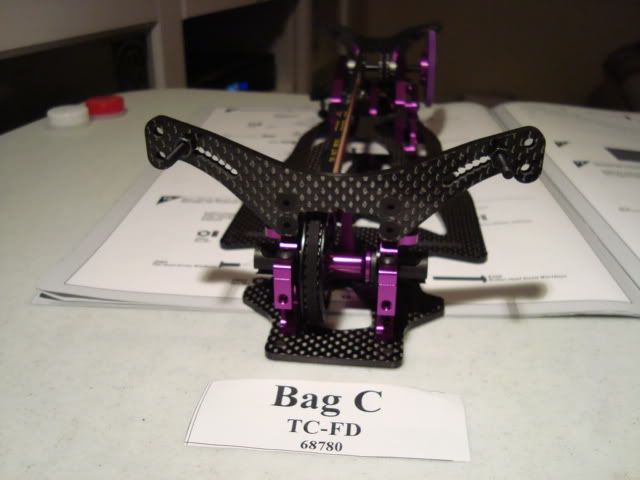

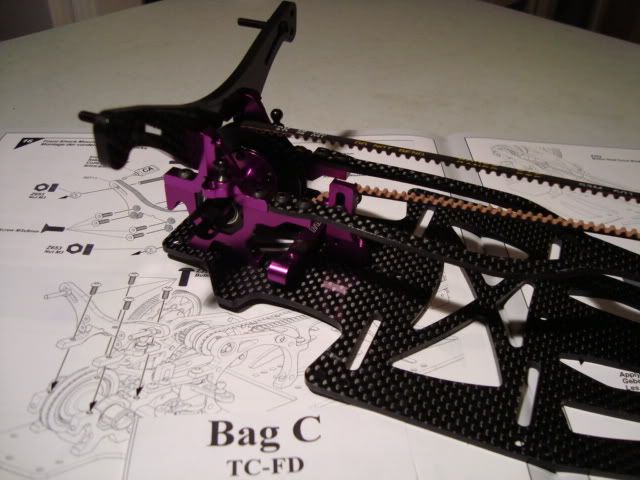

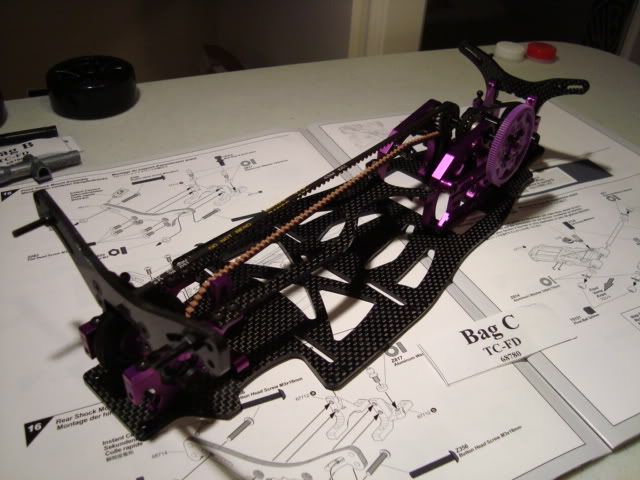

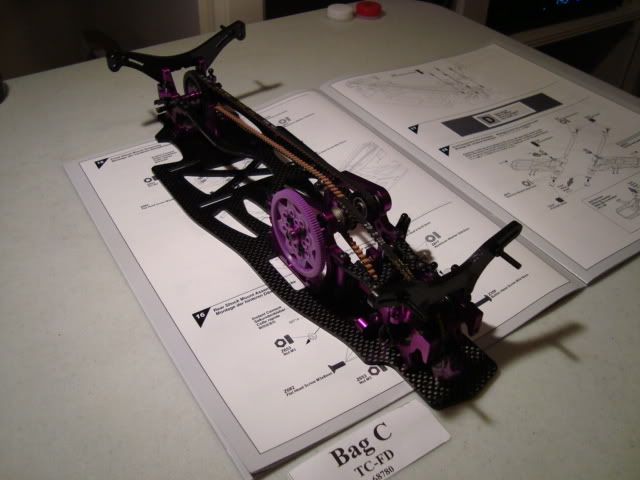

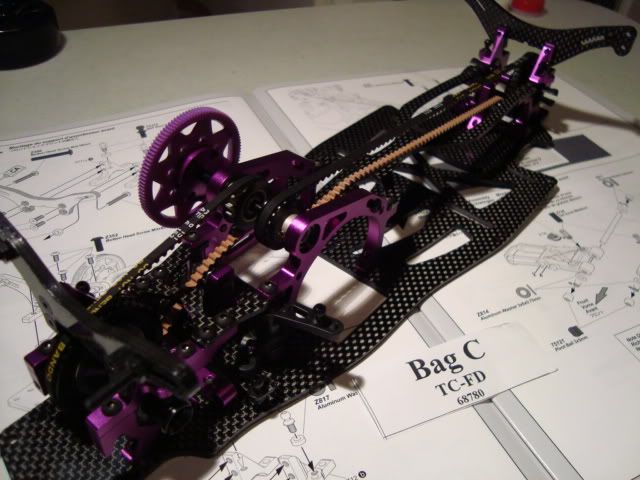

Bag C:

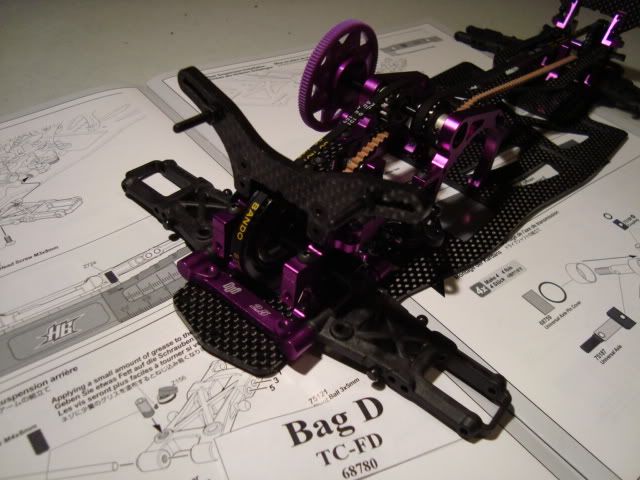

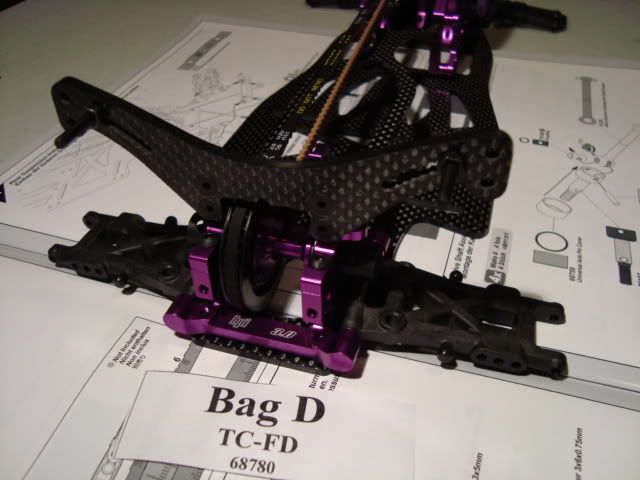

Bag D:

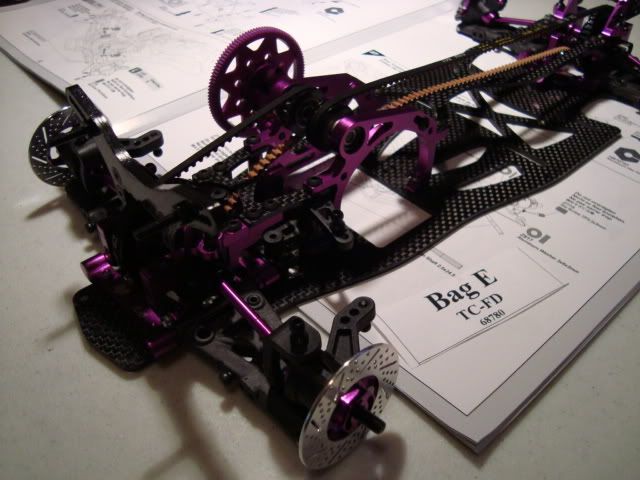

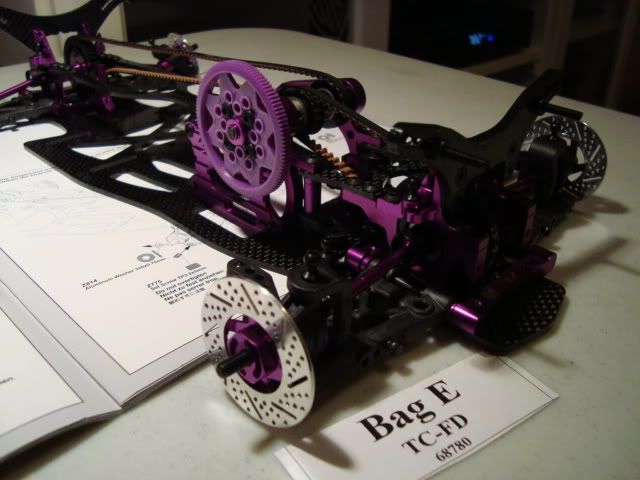

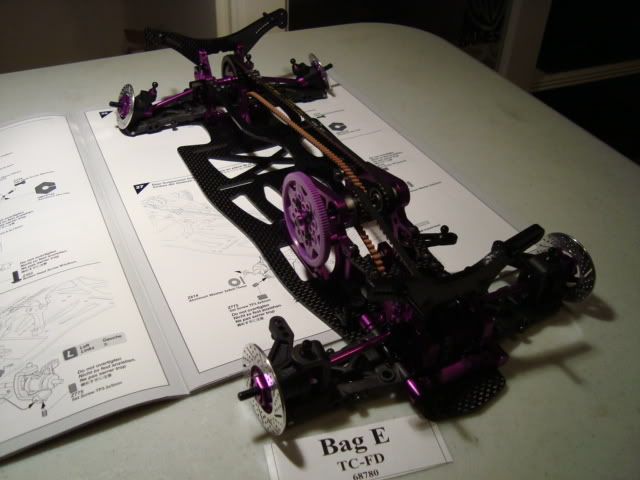

Bag E:

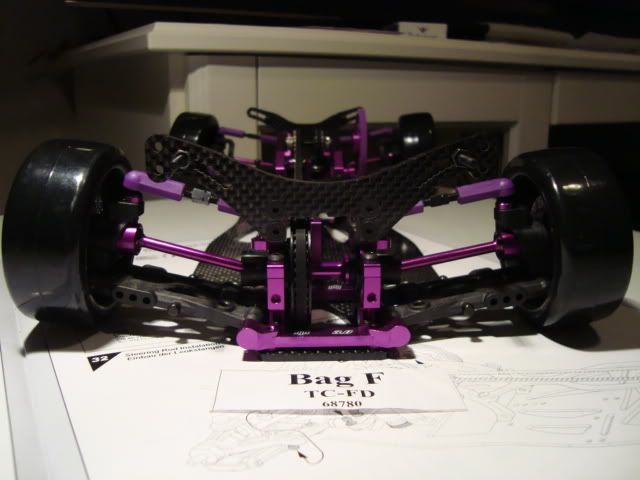

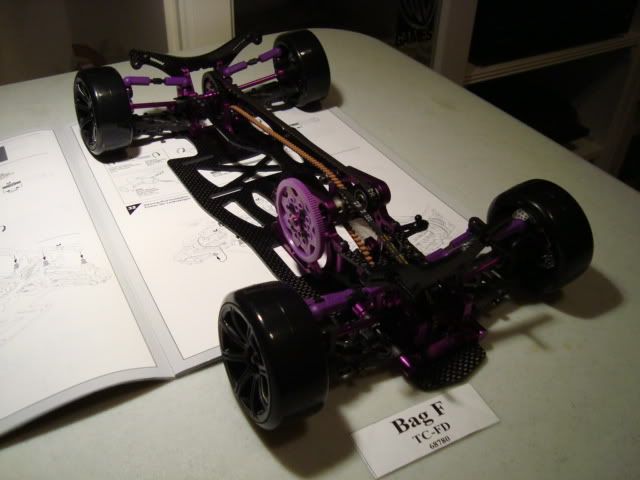

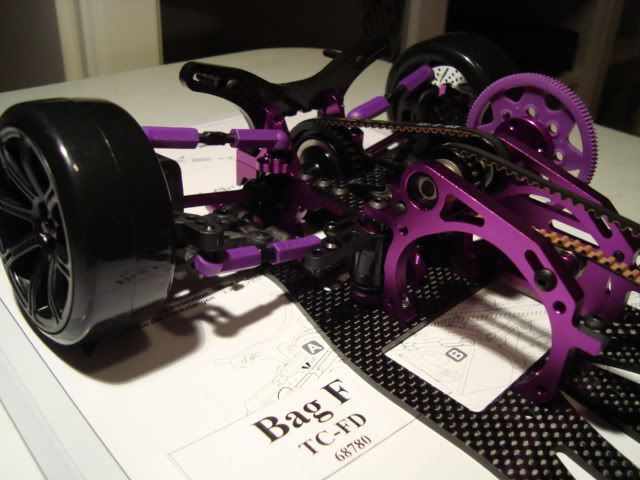

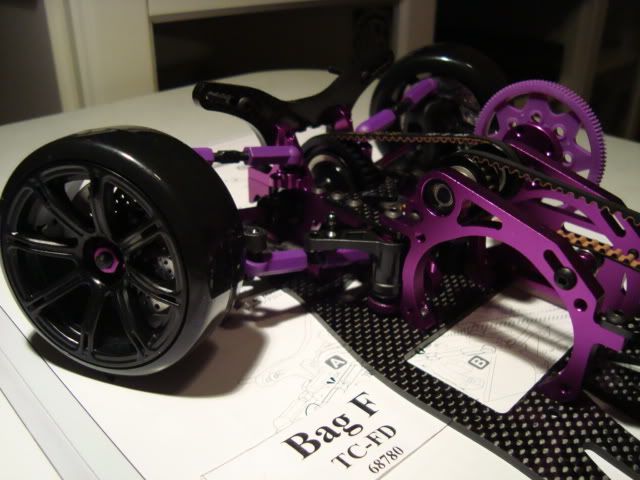

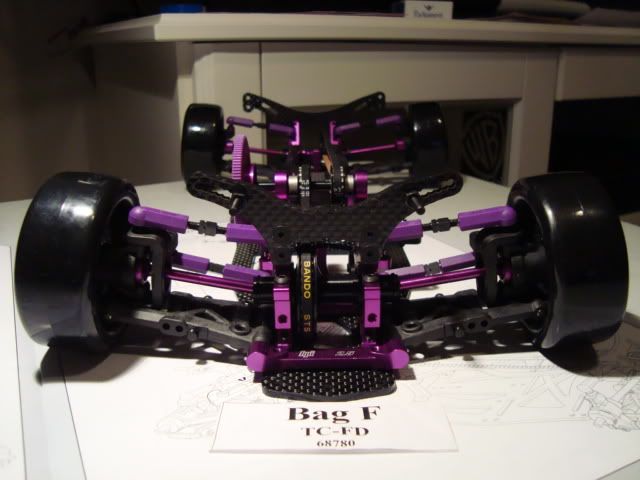

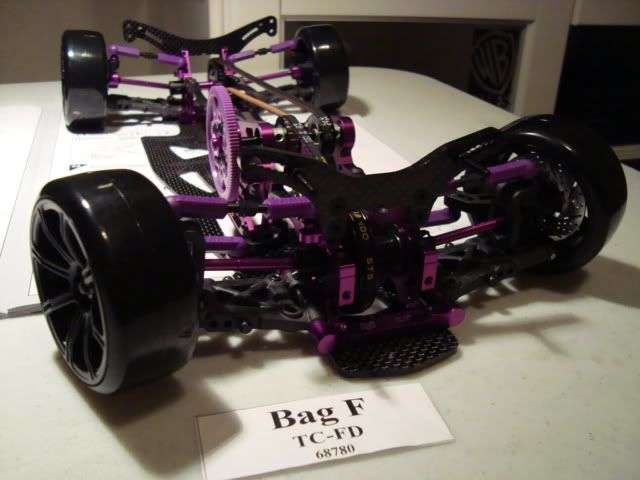

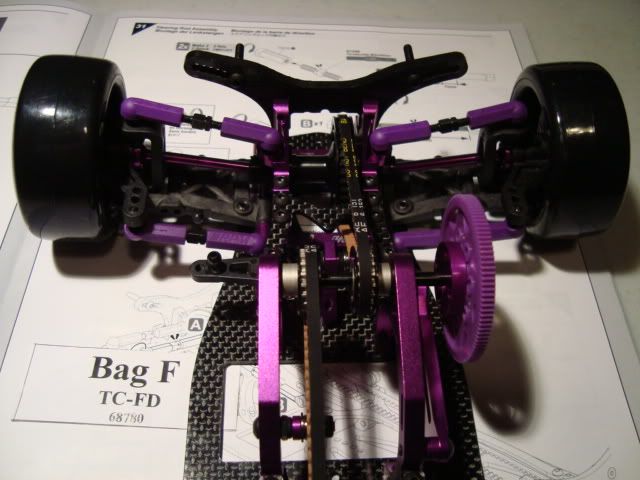

Bag F:

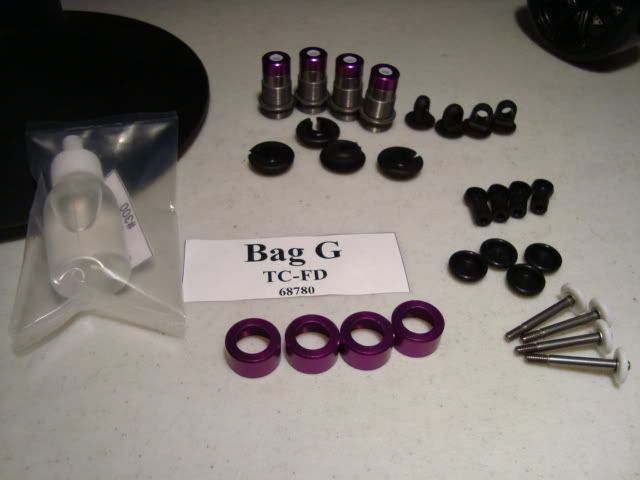

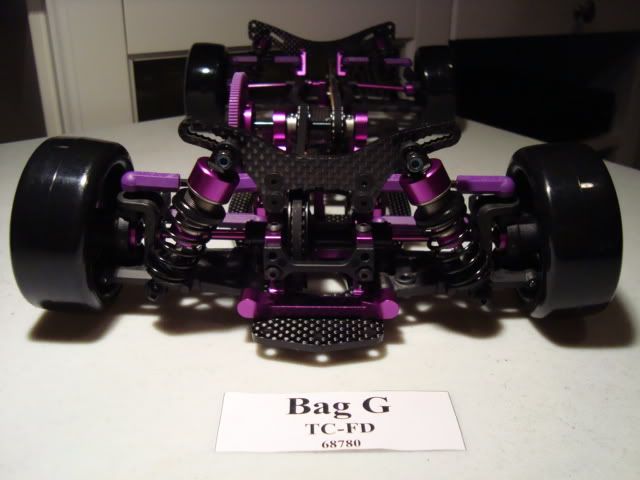

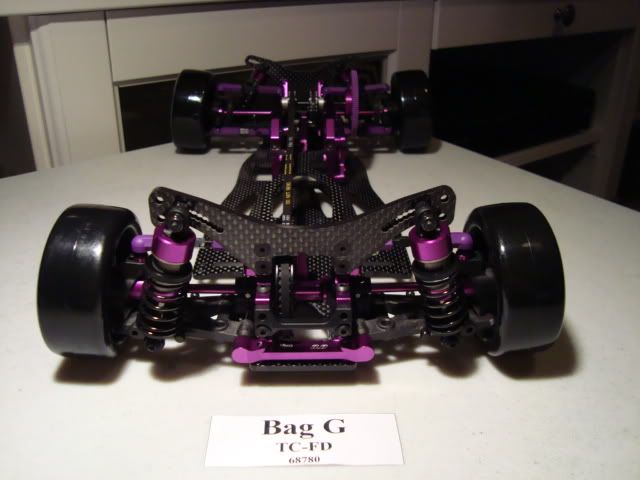

Bag G:

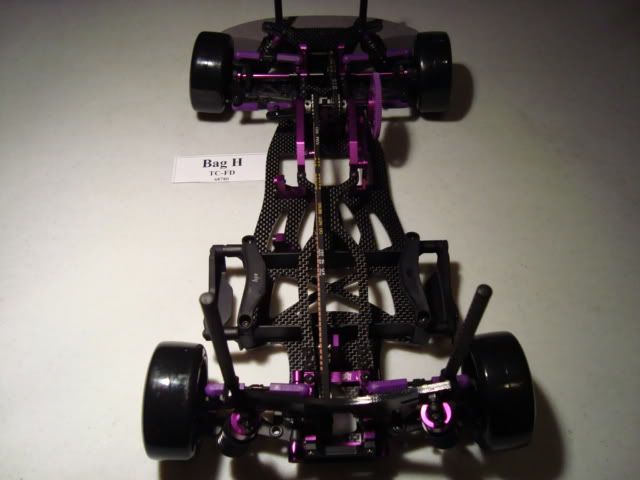

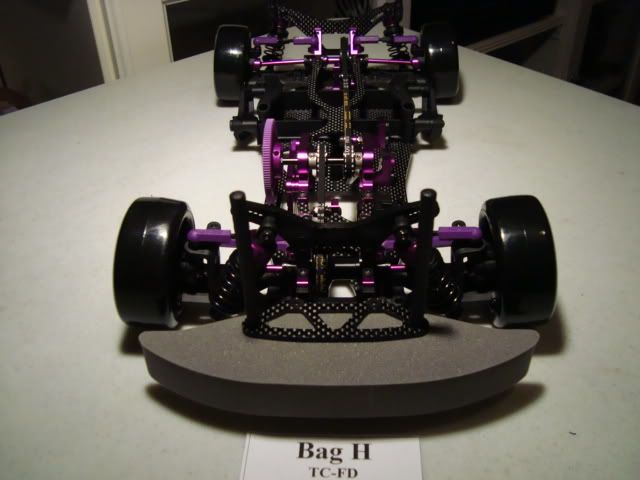

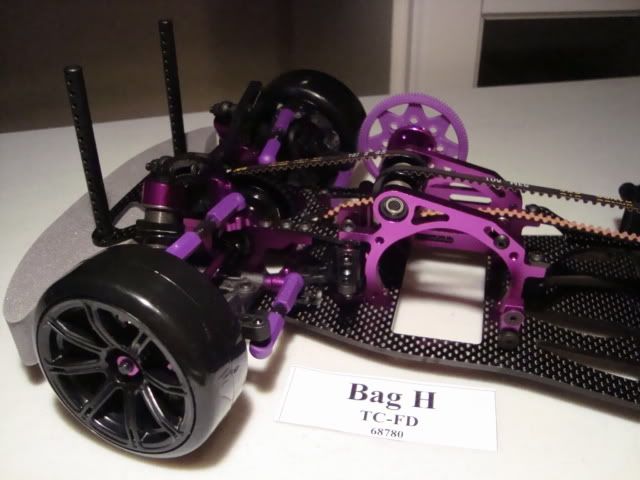

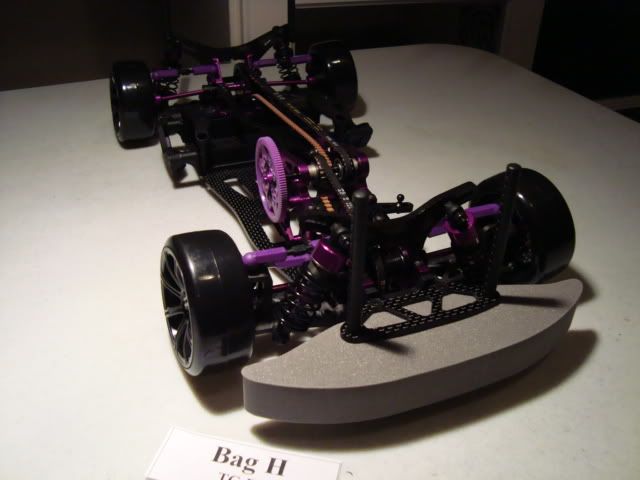

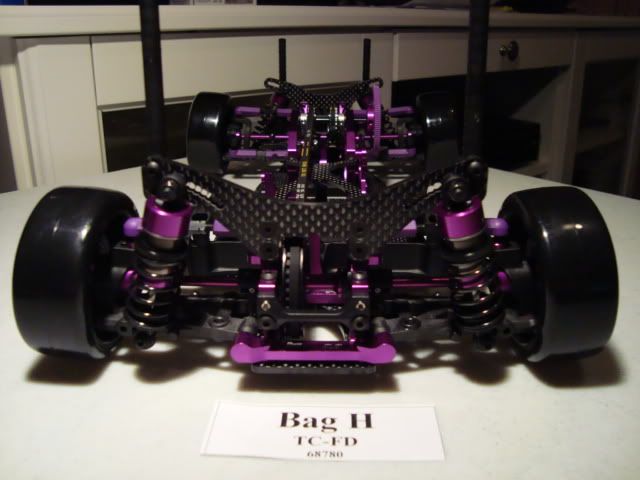

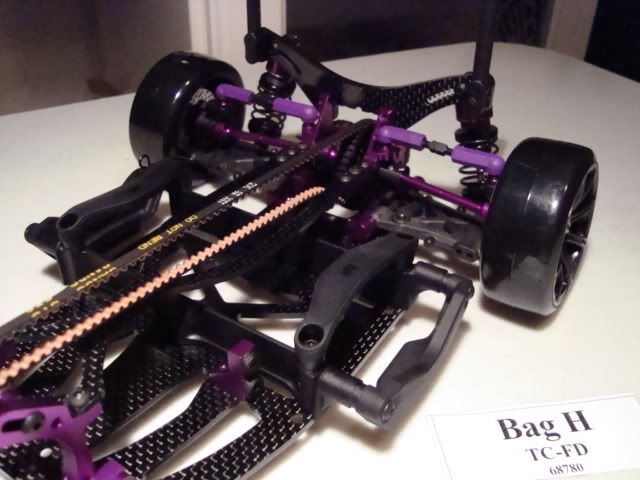

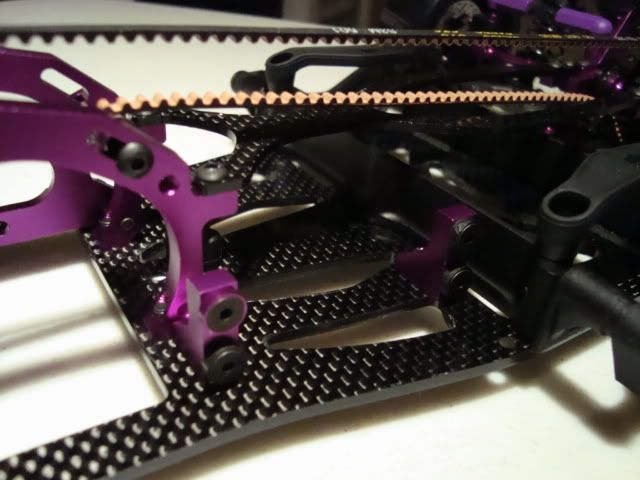

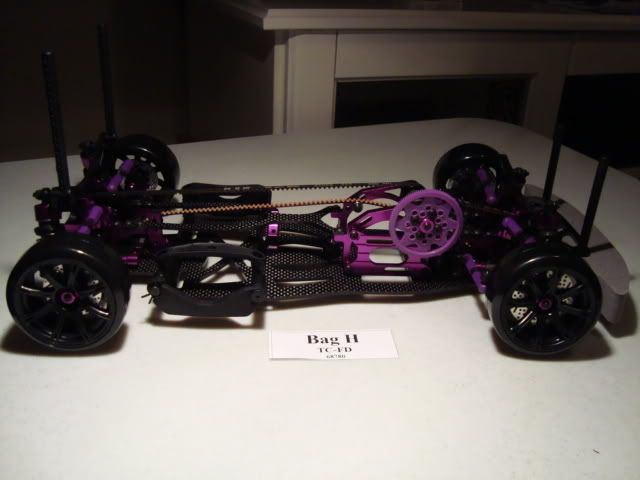

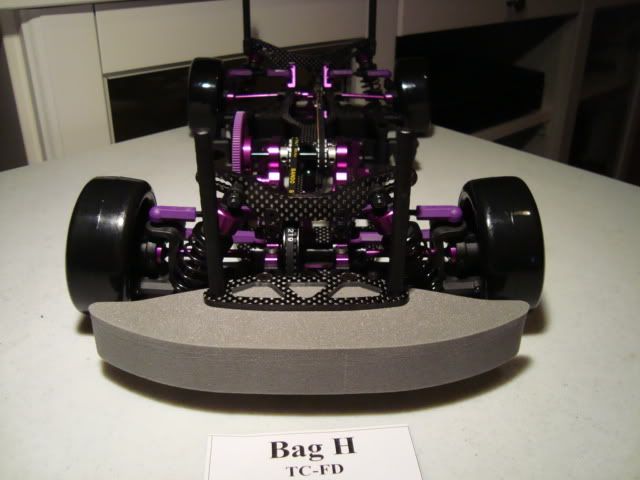

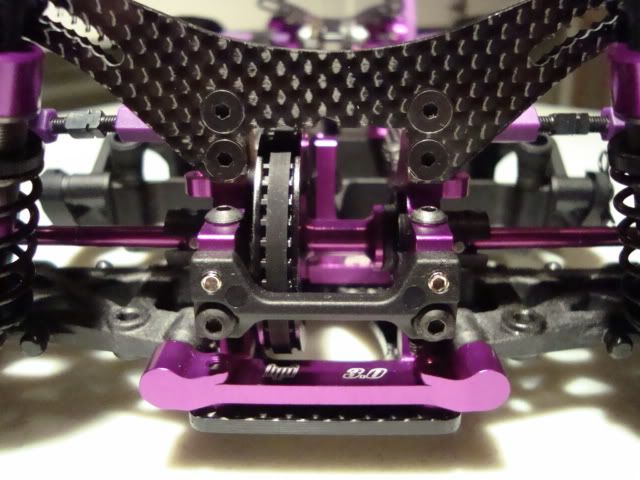

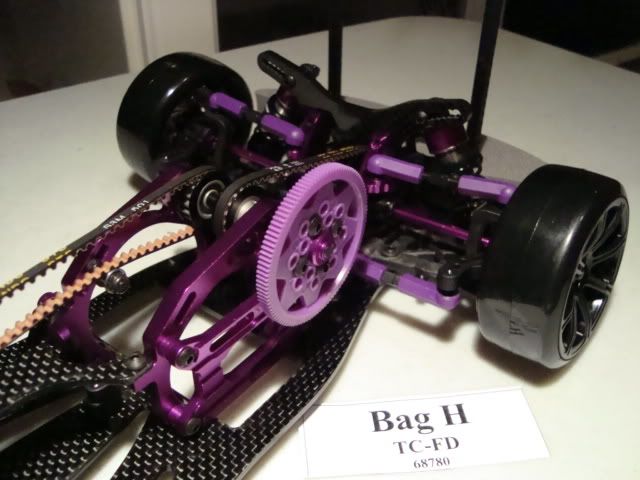

Bag H:

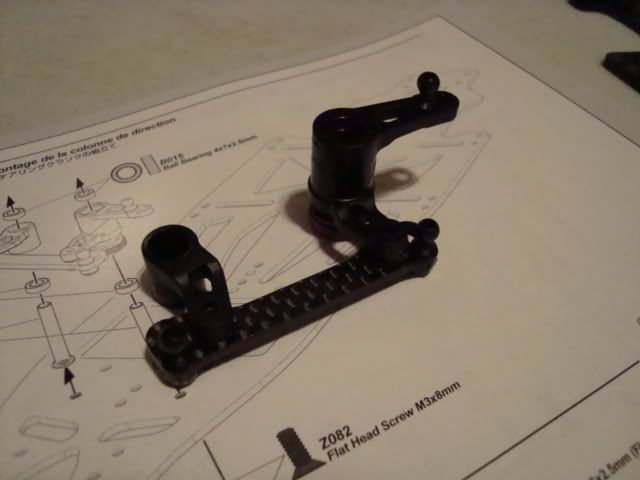

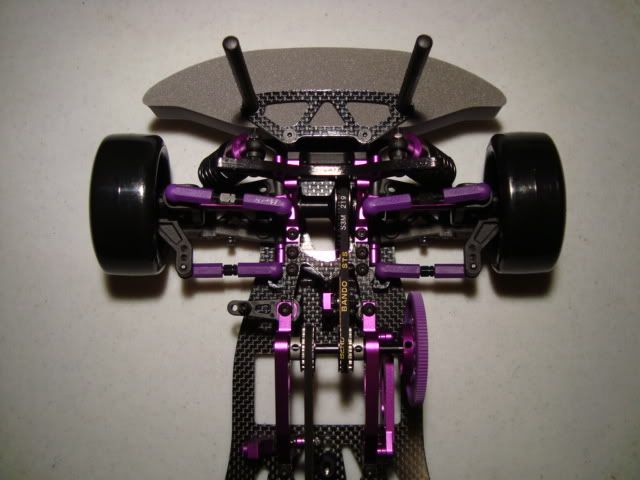

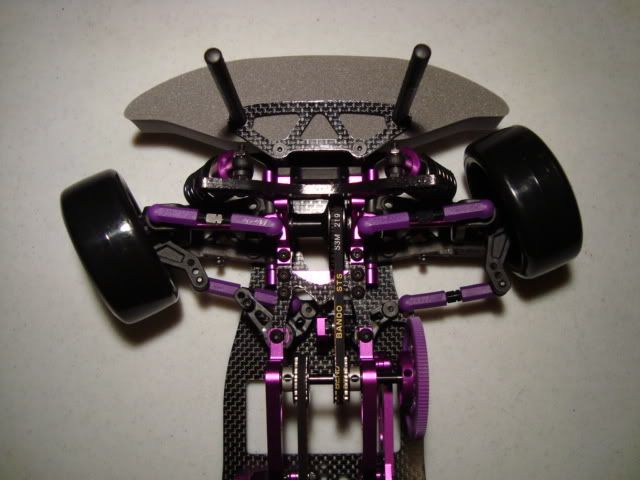

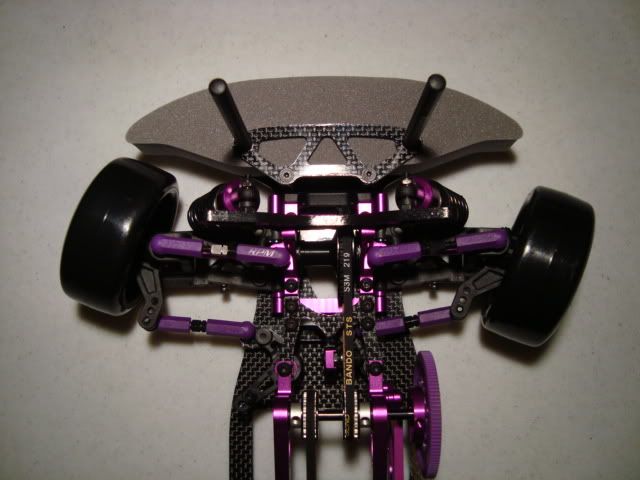

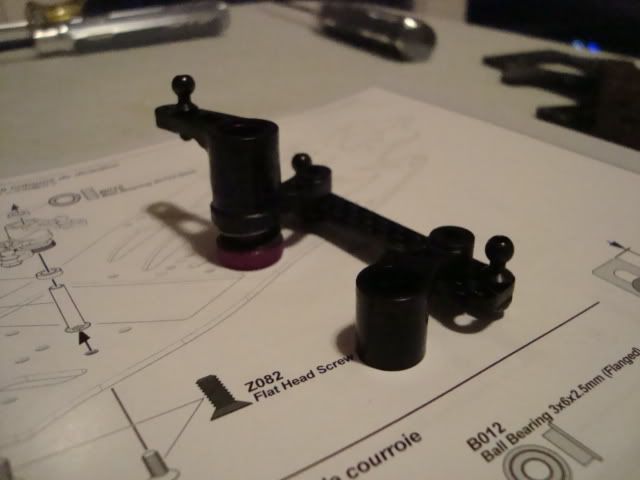

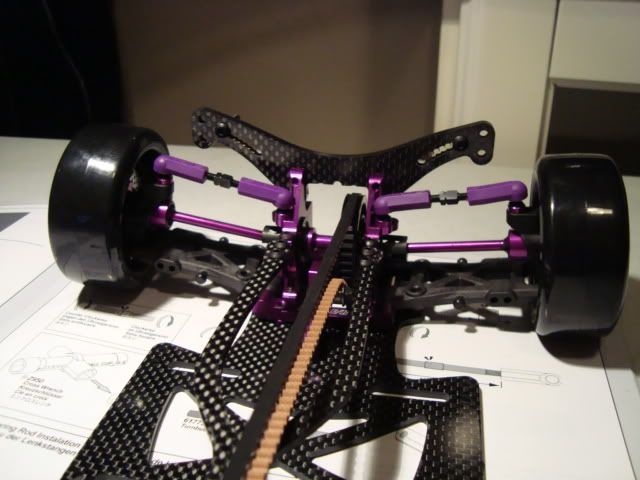

Steering Angle
Hot Bodies Aluminum Servo Mounts

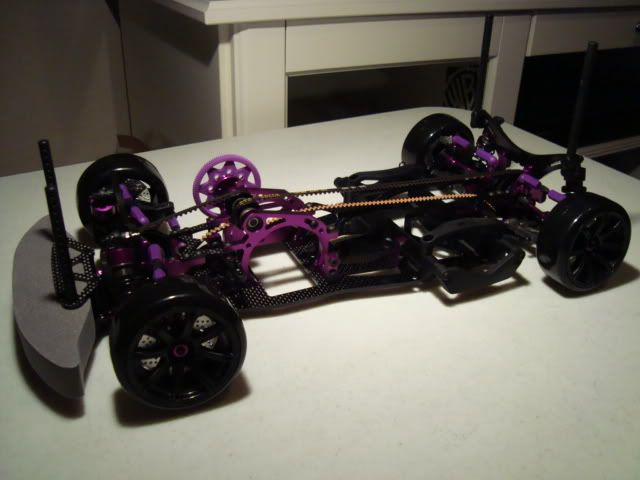

Completed Chassis!
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Sat Sep 17, 2011 11:27 pm

I got a chance to finish the build!

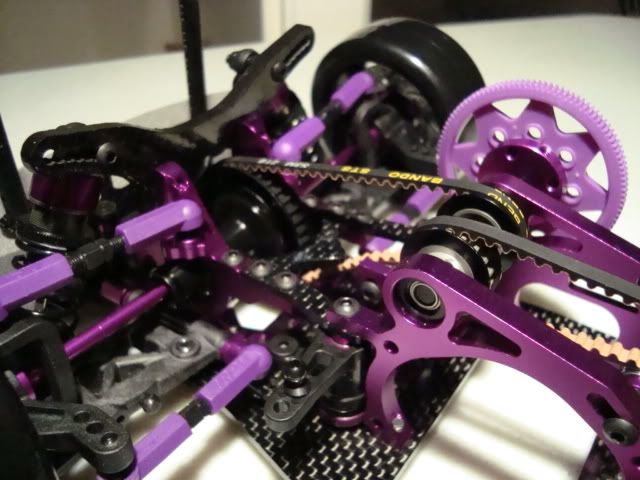

Finished Chassis with Electronic!


HPI Trueno Coupe with Pop Up lights. The Pop up is static and does not move.
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
beetledrift
Rally Style Drifting
Rally Style Drifting
Posts: 39
Joined: Fri Jan 28, 2011 4:57 pm
Drift Chassis: Tamiya TRF415 MSX MRE
Location: netherlands

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby beetledrift » Sun Sep 18, 2011 1:18 pm

looks awesome! :up:

just not really digging the purple plastic, I'd rather use some black i think.

User avatar
Davis
Still Turns In
Still Turns In
Posts: 224
Joined: Mon Dec 06, 2010 12:33 pm
Drift Chassis: TA06 D-Spec & R-OTA R31
Location: Duisburg, Germany

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Davis » Sun Sep 18, 2011 1:31 pm

Great build up report. - But that many missing parts?
And this is the steering angle out of the box, seriously??? That´s not even enough for 50/50 drifting, with a front motor setup like this! :wtf:


User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Mon Oct 10, 2011 1:16 pm

Thanks Davis.

I adjusted the steering angle so its much better. I ended up getting all my missing parts. I am now happy with this chassis. I thought the steering angle was a joke. LOL
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
TheSCOrpionKing
Rally Style Drifting
Rally Style Drifting
Posts: 71
Joined: Sun Nov 13, 2011 3:08 pm
Drift Chassis: Hot Bodies TC-FD
Location: Hawaii

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby TheSCOrpionKing » Mon Nov 14, 2011 11:57 am

Murdock wrote:Thanks Davis.

I adjusted the steering angle so its much better. I ended up getting all my missing parts. I am now happy with this chassis. I thought the steering angle was a joke. LOL


What mods did you do to increase the steering angle? I recently just ordered a TC-FD and want to tackle everything beforeI assemble. Thanks

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Mon Nov 14, 2011 12:55 pm

TheSCOrpionKing wrote:
Murdock wrote:Thanks Davis.

I adjusted the steering angle so its much better. I ended up getting all my missing parts. I am now happy with this chassis. I thought the steering angle was a joke. LOL


What mods did you do to increase the steering angle? I recently just ordered a TC-FD and want to tackle everything beforeI assemble. Thanks


I mounted the turn buckles closer to the steering knuckle, and it gave me more angle. There is another mod you can do to give you more angle, but for now I have not cut or heavily modded it yet. If you create a wider steering rack you can also gain more steering angle.

If you find a good mod please post it here.

Thanks,

Murdock
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
Moolz
Still Turns In
Still Turns In
Posts: 130
Joined: Wed Aug 17, 2011 11:28 am
Drift Chassis: Tamiya TA05 GRT - 102%, TT01 (50/50)
Location: Johannesburg
Contact:

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Moolz » Tue Nov 15, 2011 8:52 am

Wow - never really looked at the HB TC-FD before...
Great looking chassis!

out of all your chassis - which one is your favourite and why?

BTW - great ESC!
:up:

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Tue Nov 15, 2011 10:24 am

Currently my fav is the MST MS-01D Pro Kit. Tho I love my DRB I dont drive it as much. The MS-01D Pro and DRB feel really similar. The MS-01D and DRB is very predictable, and easy to setup. ITs like these cars were designed for CS.

BUT...... I have always loved my TCFD. I love all my girls. LOL
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
Moolz
Still Turns In
Still Turns In
Posts: 130
Joined: Wed Aug 17, 2011 11:28 am
Drift Chassis: Tamiya TA05 GRT - 102%, TT01 (50/50)
Location: Johannesburg
Contact:

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Moolz » Tue Nov 15, 2011 1:49 pm

Murdock wrote:Currently my fav is the MST MS-01D Pro Kit. Tho I love my DRB I dont drive it as much. The MS-01D Pro and DRB feel really similar. The MS-01D and DRB is very predictable, and easy to setup. ITs like these cars were designed for CS.

BUT...... I have always loved my TCFD. I love all my girls. LOL


|O| Great answer!
If I had to upgrade my TA05 V1 - which kit would you recommend?

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Tue Nov 15, 2011 2:41 pm

If you were to upgrade your TA05 go with Eagle Racing kit or the Square kits those are the best in my opinion.

But.. back the TCFD. Love the car too much work to set it up like my other CS cars. Hopefully HPI will wake up and make the CS kit they advertised....
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
TheSCOrpionKing
Rally Style Drifting
Rally Style Drifting
Posts: 71
Joined: Sun Nov 13, 2011 3:08 pm
Drift Chassis: Hot Bodies TC-FD
Location: Hawaii

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby TheSCOrpionKing » Tue Dec 27, 2011 2:43 pm

If you are still looking to do a factory CS setup, you can run this:
**edited: dead link**

I personally opted to run the yokomo parts from Katsumi for a 2.0 ratio. Katsumi needed to reverse the one way, but otherwise everything was a drop in fit with no modifications (just a 1mm shim on the rear spool).

Now I just need to mod my steering!
Last edited by TheSCOrpionKing on Wed Dec 28, 2011 1:53 am, edited 1 time in total.

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby Murdock » Tue Dec 27, 2011 10:29 pm

So I ordered the TCD CS kit. It gives about 1.5 CS. The TCD CS kit comes with a new rear belt, 32T rear pulley, 20T center rear pulley, and 16T center front pulley. I got mine from japan the part number is...

Hot Bodies 61788

Though the CS kit was made for the TCD I believe it will fit perfectly on my TCFD. At least I hope so...
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

User avatar
TheSCOrpionKing
Rally Style Drifting
Rally Style Drifting
Posts: 71
Joined: Sun Nov 13, 2011 3:08 pm
Drift Chassis: Hot Bodies TC-FD
Location: Hawaii

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby TheSCOrpionKing » Wed Dec 28, 2011 12:40 pm

Murdock wrote:So I ordered the TCD CS kit. It gives about 1.5 CS. The TCD CS kit comes with a new rear belt, 32T rear pulley, 20T center rear pulley, and 16T center front pulley. I got mine from japan the part number is...

Hot Bodies 61788

Though the CS kit was made for the TCD I believe it will fit perfectly on my TCFD. At least I hope so...


Should work good. I saw on another forum (can't remember which) and the guy was saying that's the setup he used.

Have you made/plan to make any mods for the steering?

pher0
Rally Style Drifting
Rally Style Drifting
Posts: 28
Joined: Sun Jun 24, 2012 6:14 pm
Drift Chassis: HB Cyclone TC
Location: London, UK

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby pher0 » Wed Mar 13, 2013 4:14 pm

do you think it would be possible to convert a cyclone tc to this if i was to get the motor mounts, most of the parts look the same

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Official Hot Bodies TC-FD Build & Resource Thread!!

Postby tokeyo83 » Thu Mar 14, 2013 1:02 am

pher0 wrote:do you think it would be possible to convert a cyclone tc to this if i was to get the motor mounts, most of the parts look the same


Negative, if you had the TCX then yes. just need the motor mount, bottom and top cf chassis pieces, and steering assembly.

For the Cyclone TC you would need the TC-D motor mount, top and bottom cf chassis pieces, and steering assembly.
"there are no stupid questions, just stupid people"
